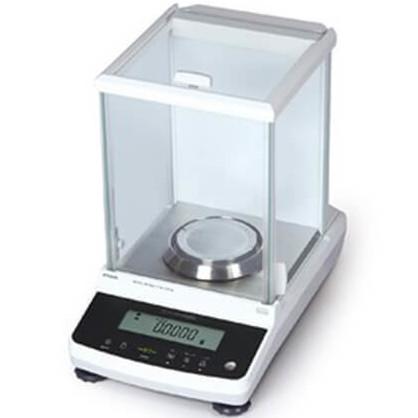

ATX/ATY-224R

BRAND: SHIMADZU

ORIGIN: JAPAN

Model: ATX/ATY-224R

Capacity: 220gm

Readability: 0.1mg

Display Character: 0.0001gm

Repeatability: 0.1 mg

Repeatability (Typical): 0.1mg

Minimum Weight: 100mg

Minimum Sample Weight (USP, 1% typical): USP-200mg, Lab 1%-10mg

Sensitivity Offset at 220 g test weight: ±0.5 mg to ±0.66 mg

Eccentricity Test Load 100 g test load: ±0.3 mg

Linearity: ±0.2mg

Response Time: 3 Seconds

Pan Size: 91 mm dia.

Body Dimensions: App. W213 X D356 X H338mm

Display: LCD display

Unit: gm, lb., pc, ct, mg, Specific Gravity with 22 units

Housing: ABS plastic with static glass enclosure and Base Aluminum Die Cast housing, Membrane type key

Interface: RS232C

Leveling System: Manual Bubble Point Leveling with paddle

Security System: Menu Lock, Service Mode Lock

Calibration: Motorized Automatic Internal & External with standard weight, External with Standard Weight

Compliance: GLP, GMP & ISO 9000 Standards

21 CFR Part 11: Supported (Software is required for use.)

User ID & Password: For user id & password you have to use software

Data Backup: Connect the balance via RS-232C (or RS-232 to USB adapter) to a Windows PC directly for Data Backup without software.

Print: Auto/manual single click print after stabilization

Over load: 150% over load protection

Operating temperature range: 5°C to 40°C

Power: 220V AC 50/60 Hz / 12 V DC

Weight: App. 6.2 kgs
