Price on request
Brand: Nagata
Origin: Taiwan
Model: KWRL-15
Capacity: 1000/1500/2000/3000/5000kg
Readability: 50/100/200/500gm
Display Character: 0.05/0.1/0.2/0.5kg
Repeatability: 50/100/200/500gm
Linearity: ± 0.05/0.1/0.2/0.5kg
Display: RED LED
Indicator
Display: 5 Segment RED LED display with 1.5inch height digits
Resolution: Up to 1/30000, Internal 3mv/v=360000
Unit: Kg/ lb. weighing modes conversion
Zero Tracking: Auto zero tracking and full tare range
Back Up: Rechargeable internal battery 6V/4Ah. 24 Hours battery backup.
Charging Indication: Low power mode and charging indication with signal
Electrical Power: Power supply with adaptor AC/DC 230Vac 50Hz

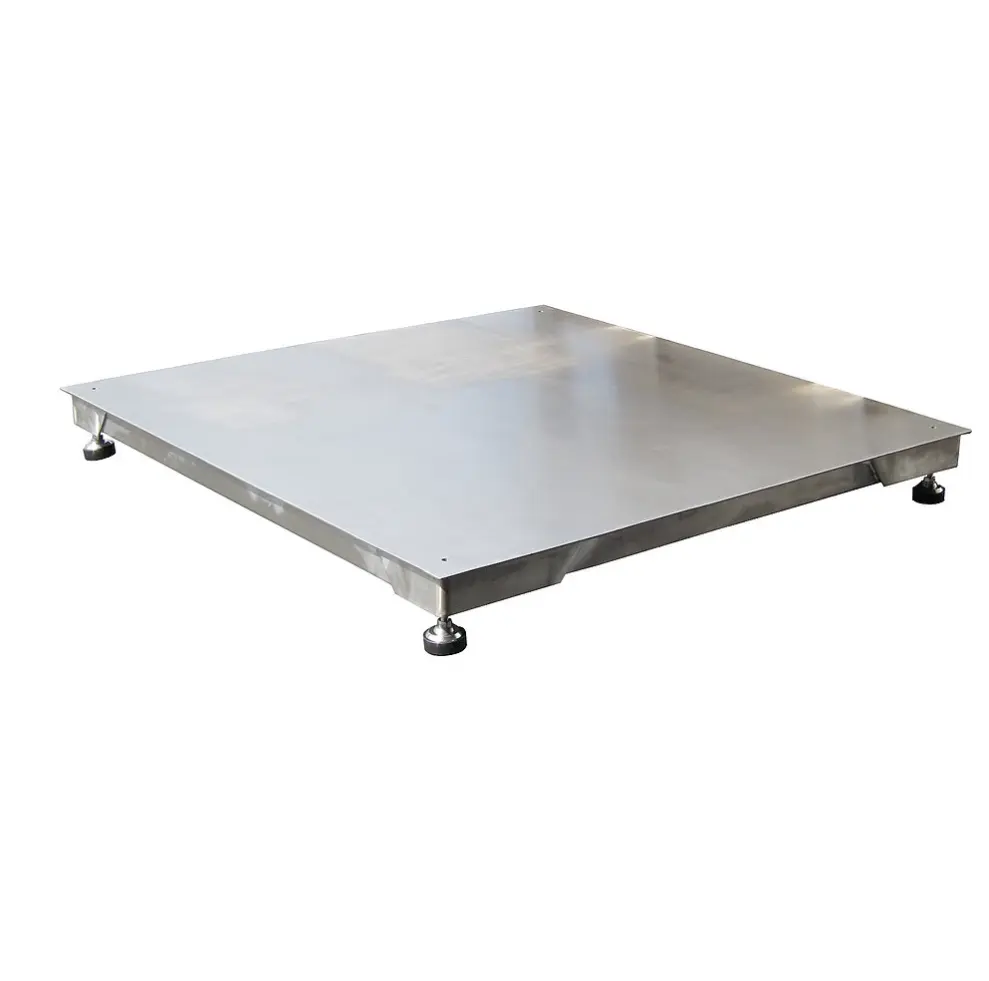

Platform
Size: 1/1, 1.2/1.2, 1.5/1.5, 2/2, 3/3 meter
Weighing Plate thickness:5mm
Material: SS304 washable
Adjustment: Adjustable feet in height, with an increase or decrease height of platform.
Overload Protection :150% over load protection.
Base
Type: Box
Size: 2/2 inch
Thickness: 2mm
Material: SS304
Load cell
Brand: Zemic
Model: BM8D
Capacity: 1.5t
Class: C3
OIML: R60/2000-NL1-12.11 revision 1
NTEP: 10-056A2
Qty: 4 Pcs.
Material: Aluminum
IP Rating: IP 68
Junction Box
Type: Metal
Material: SS304
IP Rating: IP 68
Cable
Chemical Resistance Shielded Cable
Contact our team in Savar, Dhaka for KWRL-15 Series for resin type chemical quotations, equipment selection and service support across Bangladesh.
