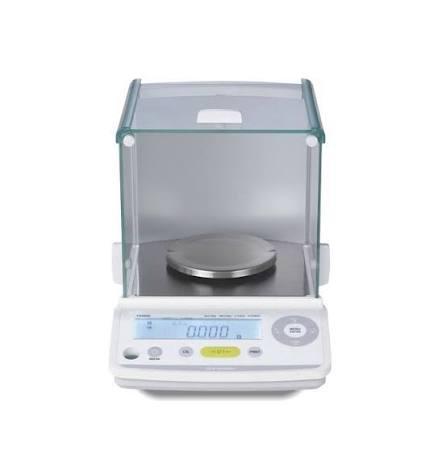

TW/TX-423L

Model: TX/TW-423L

Capacity: 420 gm

Readability: 1mg

Display Character: 0.001gm

Repeatability: 1mg

Repeatability (Typical):0.8mg

Minimum Weight: 0.02gm

Minimum Sample Weight (USP, 1% Typical): USP (0.10%)-1.6g-2.0g, Lab (1%)-0.16g-0.20g

Linearity: ±0.002 gm

Sensitivity Offset at 420 g test weight: ±0.003gm to ±0.005gm

Eccentricity Test Load 100 g test load: ≤ ±0.003gm

Response Time: 2.5 Seconds

Pan Size:  110 mm dia

Body Dimensions: App. W206 X D291 X H241 mm

Display: LCD with Backlit liquid crystal display

Weighing Sensor: Uniblock Technology

Unit: gm, lb., pc, ct, mg, Specific Gravity Measurement with 22 units

Housing: ABS plastic upper case & Aluminum die cast lower case with air block glasses static enclosure, Membrane type key

Interface: RS232C

Leveling System: Manual Bubble Point Leveling with paddle

Security System: Menu Lock, Service Mode Lock

Calibration: External with standard weight and Motorized Internal Automatic

Compliance: GLP, GMP & ISO 9000 Standards

21 CFR Part 11: Supported (Software is required for use.)

User ID & Password: Not include on the balance but using the software you will manage countless user IDs and passwords.

Data Backup: Connect the balance via RS-232C (or RS-232 to USB adapter) to a Windows PC directly for Data Backup without software.

Print: Auto/manual single click print after stabilization

Over load: 150% over load protection

Operating temperature range: 5°C to 40°C

Power: 220V AC 50/60 Hz / 12 V DC

Weight: App. 3.8 kgs
