Image 1 of 4
Price on request
Brand: Shimadzu
Origin: Japan

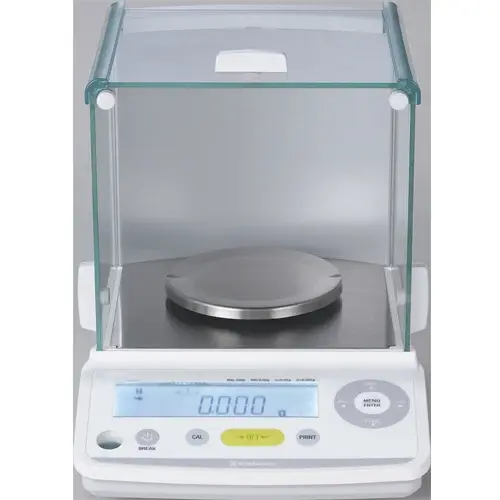

Model: TX-323L
Capacity: 320 gm
Readability: 1mg
Display Character: 0.001gm
Repeatability: 1mg
Repeatability (Typical):0.8mg
Minimum Weight: 0.02gm
Minimum Sample Weight (USP, 1% Typical): USP (0.10%)-1.6g-2.0g, Lab (1%)-0.16g-0.20g
Linearity: ±0.002 gm
Sensitivity Offset at 320 g test weight: ±0.002gm to ±0.003gm
Eccentricity Test Load 100 g test load: ≤ ±0.002gm
Response Time: 2.5 Seconds
Pan Size: 110 mm dia
Body Dimensions: App. W206 X D291 X H241 mm
Weight: App. 3.8 kgs
Display: LCD with Backlit liquid crystal display
Unit: gm, lb., pcs, ct, mg, Specific Gravity with 22 units
Housing: ABS Plastic with Aluminum Die Cast Base, Membrane type key
Interface: RS232C
Leveling System: Manual Bubble Point Leveling with paddle
Security System: Menu Lock, Service Mode Lock
Calibration: External with standard weight And Automatically Motorized Internal
Compliance: GLP, GMP & ISO 9000 Standards
21 CFR Part 11: Supported (Software is required for use.)
User ID & Password: For user id & password you have to use software
Data Backup: Connect the balance via RS-232C (or RS-232 to USB adapter) to a Windows PC directly for Data Backup without software.
Print: Auto/manual single click print after stabilization
Over load: 150% over load protection
Operating temperature range: 5°C to 40°C
Power: 220V AC 50/60 Hz / 12 V DC
Contact our team in Savar, Dhaka for TX/TW-323L quotations, equipment selection and service support across Bangladesh.
