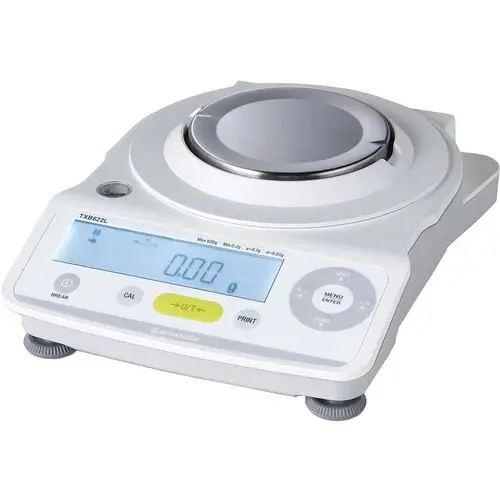

TXB Series

Model: TXB-222L / 422L / 622L

Capacity: 220 / 420 / 620gm

Readability: 10 mg

Display Character: 0.01gm

Repeatability: 0.01gm

Repeatability (Typical): 0.01gm

Minimum Weight: 20gm

Minimum Sample Weight (USP, 1% typical): USP - 20gm, Lab 1%-1gm

Sensitivity Offset (at 220g, 420, 620 g test weight): ±0.010 g to ±0.015 g, ±0.025 g to ±0.035 g, ±0.025 g to ±0.035 g

Eccentricity Test (Corner Load Error at 100 g test load): ±0.02 g, ±0.02 g to ±0.03 g,

Linearity: ±0.02gm

Response Time: 3Seconds

Pan Size: 110 mm dia.

Body Dimensions: App. W199 X D260 X H77mm

Display: LCD display with Crystal Clear backlit

Unit: gm, lb., pcs, ct, mg, Specific Gravity with 22 units

Housing: ABS Plastic with Aluminum Die Cast Base, Membrane type key

Interface: RS232C

Leveling System: Manual Bubble Point Leveling with paddle

Security System: Menu Lock, Service Mode Lock

Calibration: External with standard weight

Compliance: GLP, GMP & ISO 9000 Standards

21 CFR Part 11: Supported (Software is required for use.)

User ID & Password: For user id & password you have to use software

Data Backup: Connect the balance via RS-232C (or RS-232 to USB adapter) to a Windows PC directly for Data Backup without software.

Print: Auto/manual single click print after stabilization

Over load: 150% over load protection

Operating temperature range: 5°C to 40°C

Power: 220V AC 50/60 Hz / 12 V DC

Weight: App. 1.5 kgs
